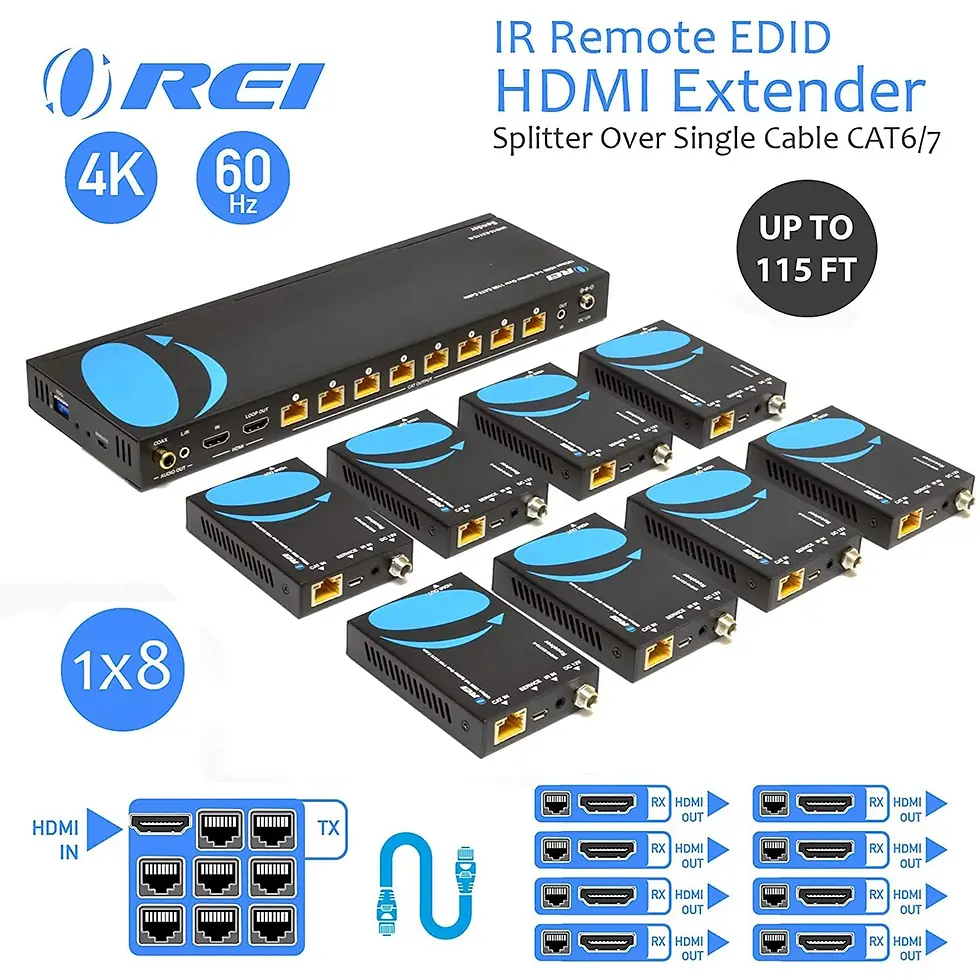

OREI UHD18-EX115-K 18Gbps HDMI 1x8 Splitter

Can distribute 1 HDMI source signal to 8 display. The product supports 1 HDMI input, 1 HDMI loop output, and 8 CAToutputs. It can extend the signal transmission distance up to 35 meters at the resolution of 4K2K@60Hz, 50 meters at 4K2K@30Hz, 60 meters at 1080P@60Hz via a single CAT6/6a/7 cable.The product supports up to 7.1CH HD audio pass-through. HDMI 2.0, HDCP 2.2 / 1.x, and DVI 1.0 Complain. . It supports audio extract function and advanced EDID management.



Resolution Supported - 4K@60Hz, 4K@30Hz, 1080i@50/60Hz, 1080p@50/60Hz, 720p@50/60Hz, 576i@50Hz, 576p@50Hz, 480i@60Hz, 480p@60Hz.



HDMI Audio Formats - LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD.



Coxial Audio Formats - LPCM2.0, LPCM5.1, Dolby Digital 2/5.1CH.

Coxial Analog Audio Formats - PCM 2.0.



Features

  • Distribute 4K 1 HDMI source to 8 HDMI displays over Cat6/7/8 Network Cable simultaneously
  • Splitter Included - No Switcher Needed
  • Power Over LAN - No Adapter needed on Receiver Side
  • Output 4K signal up to 115 Feet with Cat6/7 cable and 1080p signal up to 165 Feet
  • HDMI Transmitter is equipped with 8 Port CAT6 Output and 1 Additional HDMI Output to connect to a local display or monitor
  • Supports HDR, HDR10, HDR10+, Dolby Vision, HLG
  • Support up to 7.1CH HD audio pass-through
  • Loop Out on Sender Unit
  • Full IR Remote Control Input
  • Supports 20~60Hz IR Pass Back
  • Control a DVD Player, or Other HDMI Video Source from a Remote Location with the included IR cables that forward commands over a dedicated DDC Channel
  • Supports 18Gbps Bandwith
  • Compatible with CAT6/6a/7 Network Cables
  • The highest resolution supported is 3840x2140p@60Hz
  • Ideal Solution for HDMI Exhibition, Video Conference, Meeting rooms, and Bars, etc.
  • Plug & Play Setup without any Software Installation
  • This unit requires only one power adapter to work

OREI UHD18-EX115-K HD 1x8 HDMI Extender Splitter Over CAT6/7-115 Ft Support 4k

وحدة SKU: UHD18-EX115-K
$309.95السعر
