HIGH PERFORMANCE 2+2 CHANNEL DJ MIXER

Xone:23 is a 2+2 channel DJ mixer packed with pro features that would normally be found in the booth of a top-rated club, including an enhanced version of the legendary Xone filter with resonance control, VCA faders, 3 band total kill EQ, illuminated switches, crossfader curve selector and styling inspired by the flagship Xone:DB4.



At the heart of the mixer is the renowned analogue Voltage Control Filter (VCF) system

offering Low-Pass and High-Pass filters, frequency sweep and `mild to wild' resonance control. There is also an FX loop to connect to third party FX units, which route back in through the filter system.



The 2 stereo channels feature independent level controls

for each input enabling up to four stereo sources to be simultaneously routed to the mix, as well as the dedicated send and return system for external FX.

The main mix output and mic input are on professional standard balanced XLR's, and there is a dedicated record output. The Xone:23 is equipped with comprehensive monitoring facilities, including a booth output with its own volume control, a cue mix control, and signal levels clearly displayed on the 9 segment peak hold meters.


Styled on the Xone:DB4, the Xone:23 includes soft touch, backlit controls, light-piped meters

and a distinctive new shaped steel faceplate. The mixer can also be upgraded with the latest Innofader for enhanced scratch performance, available as an accessory.



Features

  • 2+2 channels with dual phono/line inputs
  • VCF Filter system - low-pass + high-pass filters plus frequency and resonance controls
  • 3-band true total kill EQ
  • External FX loop
  • Mic input on balanced XLR, with 2-band EQ
  • Balanced main mix out on XLR
  • Independent booth out
  • Record out
  • 3.5mm and 1/4" headphone outputs
  • Touring grade build quality
  • Super smooth VCA channel faders
  • User changeable crossfader
  • Innofader compatible
  • Crossfader curve switch
  • 20dB pro standard headroom
  • Ultra low distortion
  • 2mm Steel face plate
  • 9-segment signal level monitoring

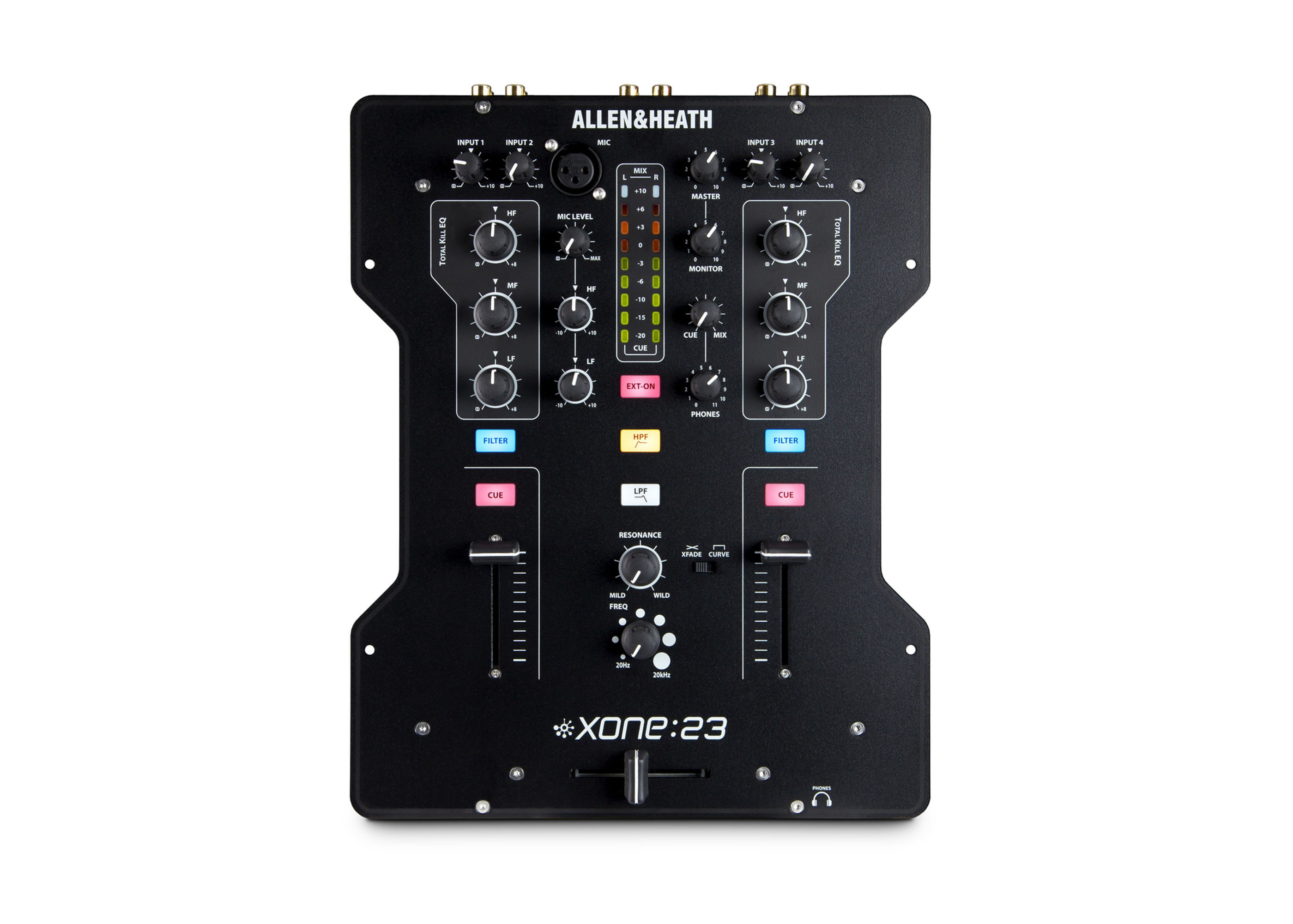

Allen & Heath XONE:23 High Performance 2 Plus 2 Channel DJ Mixer

SKU: XONE:23
$449.95 Regular Price
$396.95Sale Price

Allen & Heath XONE:23

Number of Channels 2 x Stereo
Fader Shutoff Channel: >-80 dB
Crossfader: >-80 dB
EQ Channel EQ:
Hi
Mid
Low
Built-In Effects None

Connectivity

Audio Inputs 2 x Stereo RCA Phono Input
2 x Stereo RCA Line Input
1 x Stereo RCA Return Input
1 x XLR 3-Pin Mic Input
Audio Outputs 2 x XLR 3-Pin Balanced Master Output
1 x Stereo RCA Booth Output
1 x Stereo RCA Record Output
1 x Stereo RCA Send Output
1 x 1/4" TRS Headphone Output
1 x 1/8" / 3.5 mm TRS Headphone Output
USB None

Performance

Frequency Response 10 Hz to 50 kHz
Input Level Phono:
7 (Min)
100 mV (Max)
Line:
-10 dBu (Min)
+20 dBu (Max)
Return:
0 dBu (Min)
+20 dBu (Max)
Mic:
-42 dBu (Min)
-12 dBu (Max)
Output Level Master:
+4 dBu (Nominal)
+28 dBu (Max)
Booth:
-2 dBu (Nominal)
+22 dBu (Max)
Record:
-2 dBu (Nominal)
+19 dBu (Max)
Send:
-2 dBu (Nominal)
+19 dBu (Max)
Headphone Output Power 200 mW into 30 Ohms (Max)
I/O Impedance Phono Input:
47 Ohms
Line Input:
20 Kilohms
Return Input:
10 Kilohms
Mic Input:
<2 Kilohms
Master Output:
100 Ohms
Booth Output:
100 Ohms
Record Output:
100 Ohms
Send Output:
100 Ohms
Headphone Output:
1 Ohms
SNR Master:
-85 dBu
THD+N 0.01%

Physical

Dimensions (W x D x H) 9.4 x 12.4 x 4.2" / 240.0 x 315.0 x 106.0 mm
Weight 6 lb / 2.7 kg

Packaging Info

Package Weight 10.9 lb
Box Dimensions (LxWxH) 18.2 x 13.1 x 7.7"
